1974 CESSNA 414
S/N 0523-74
Contact Seller
Julio Garcia Sanchez
+34 619230907
Airframe
TT 7478 (as at 07/2025)
Engine(s)
Engine Manufacturer: Continental
Model: TSIO-520-NB engine in accordance with RAM Series VII STC SE4327SW-D
Right Hand Serial Number: 290972-R
Left Hand Serial Number: 287501-R
Cleveland brake kit
Installed on June 3, 2025
1974 Cessna 414
Year:
Location:
Manufacture:
Serial Number:
Registration Number:
Total Time
1974
Valencia (Spain)
Cessna
0523-74
EC-FJF
7478 hrs
Summary:
Both, interior and exterior in this 414 are in “as factory new conditions”.
Exterior paint 10/10
All sound proofing and thermos-isolation materials have been replaced.
Seats Trim, side panels, ceiling and carpets have been reupholstered.
Instrument panel thoroughly redesigned for optimum ergonomics and multicrew efficiency.
All avionics replaced by digital ones. The aircraft certified ADS-B-OUT/IN, RNP, LPV and VNAV.
Upgraded to RAM series VII on June, 2025, including GAMI Balanced Fuel Injectors and 120Amp alternators upgrade.
All brakers replaced by new ones on a new Braker Panel
2 New Hartzell Scimitar propellers, included with RAM series VII upgrade.
Optional pressurization system in perfect conditions (11.000ft in cabin at FL250) .
Meteo-Radar replaced by latest estate of the Art-Garmin GWX80 with all options.
Aircraft always hangared.
Same owner for the last 25 years.
All services bulletins and AD’s up to date.
Prop Details
Hartzell Scimitar propeller PHC-C3YF-2UF/FC7693DF and 2UF/FC7693DFB in accordance with FAA STC SA09971SC-D
Right Hand Serial Number: EB8938B
Left Hand Serial Number: EB8937B
Complete RAM Synchrophaser System, with Governor Modified per RAM STC SA09469SC-D
Installed New outright on June 3, 2025
Interior Details
Avionics
Auto Pilot System S-TEC 3100 with Yaw dumper
2 x Garmin GI275 PFD/HSI/EIS System
1 x Garmin GTN750Xi GPS/NAV/COM
1 x Garmin GNC 215 NAV/COM
1 x Garmin GTX330
1 x GTX 345 Transponder System
1 x Bendix/King KR-87 ADF
1 x Bendix/King KN-64 DME
1 x Artex ME 406-ELT
1x Garmin GWX80, Automode, lighting, turbulence, hail, wind shear detection.

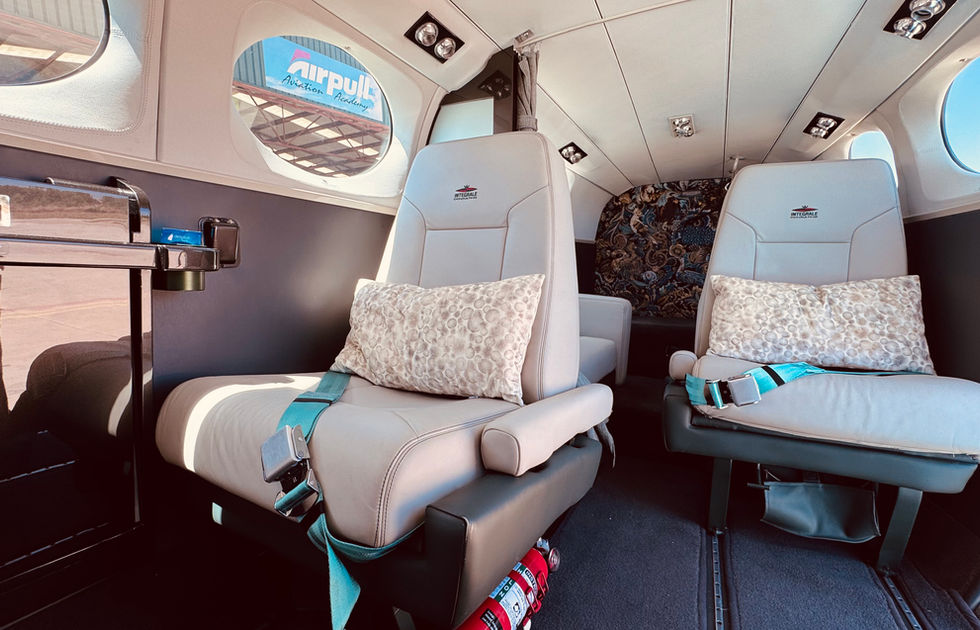

2025 Full Interior refurbishment, including Sound and thermoisolation
7 Belted Seats
Features/Options
Vortex Generator Kit
Complete RAM Synchrophaser System
Slick Pressurized Magnetos
Dual Strake kit
Oxygen System 11Cu feet
Surface De-Ice
Alcohol Windshield Anti-Ice
Optional Ice Shields on fuselage sides
Freon Air Conditioning
Toilet Potty (belted)
RAM VII 335 HP engines.
Extended Fuel capacity
2x 120A Alternators
All lights and bults (interior and exterior) LED
Combustion Heater replaced with new Hartzell Heater
Engine Beams NDT inspection June, 2025
2025 New Engine Flex Hoses RAM VII
Corrosion Program Inspections performed
News Seat Belts
ADL 200: Iridium weather and traffic information interfaced GTN750
Extended range fuel tanks 201,5 usable GAL
Empty Weight: 5.050 lbs.
Max Ramp Weight: 6850 pounds
Max Landing Weight: 6430 pounds
Maintenance Status
Aircraft on CAMO
200Hrs Annual Inspection completed 03/06/2025
ARC Airworthiness Review Inspection renewed on 17/10/2024
